API Security Definitions

Defining Security Definitions

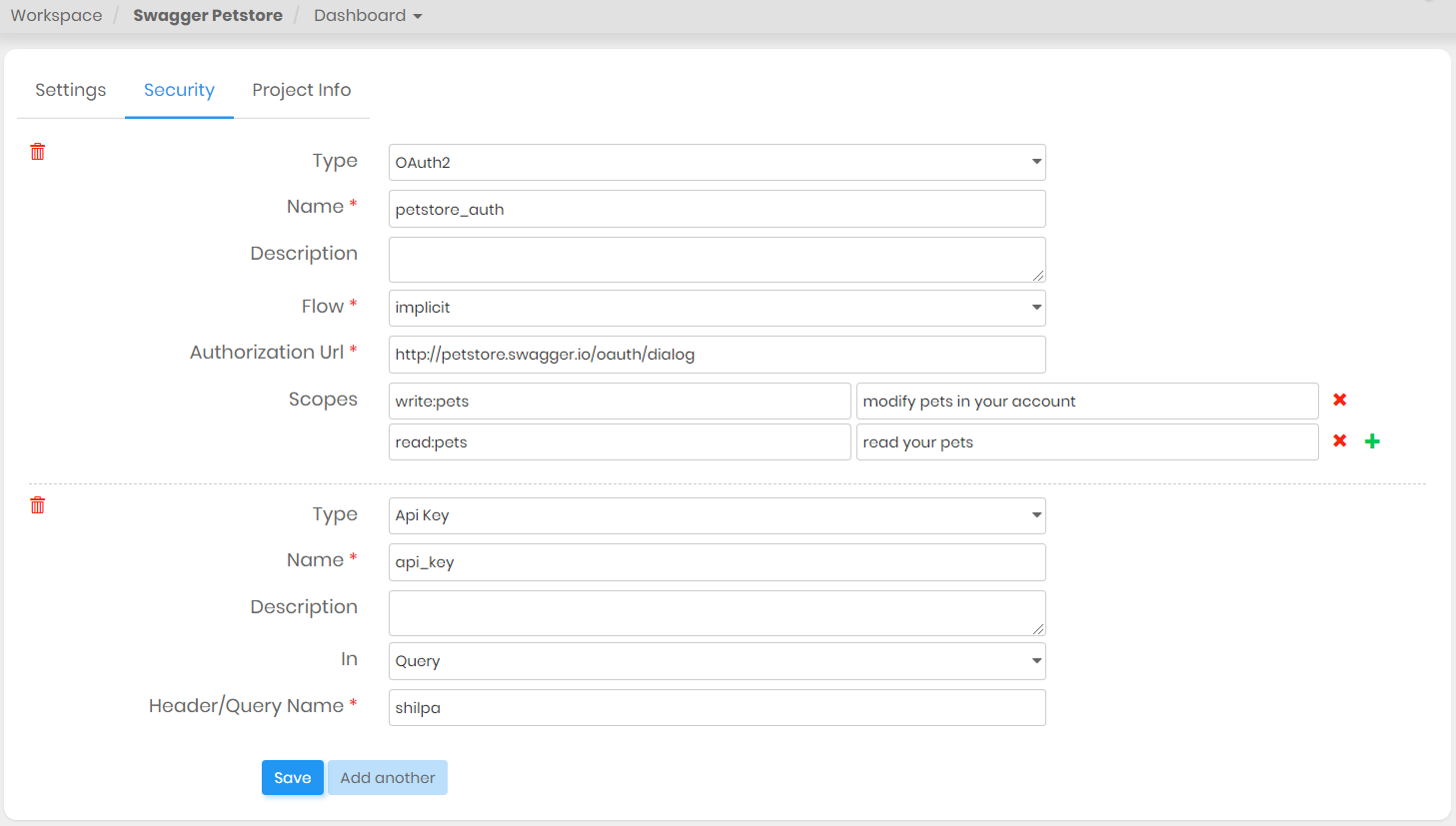

You can specify different Security Definitions for your APIs while designing your API in the designer section. This adheres to the securityDefinitions property of the Swagger specification. To define the security definitions navigate to your API projects home and open the Security section as shown below.

You can select following type of security definitions as supported by Swagger specifications.

  1. basic - Basic Authentication using a username and password

  2. apiKey - Authentication via an api key by passing it either via header or query param.

  3. oauth2 - OAuth 2.0

Using Security Definitions

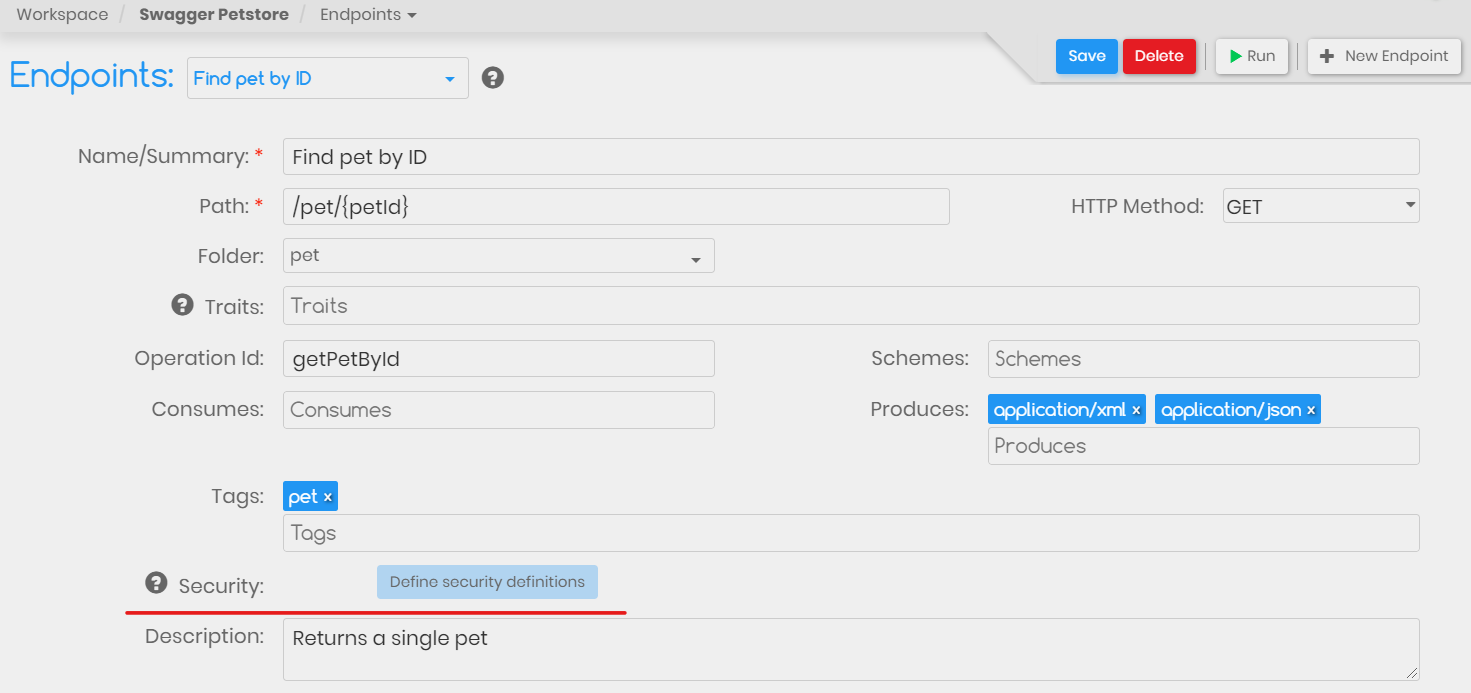

Once the security definition are defined you can start adding them in the Endpoint designer section. By default no security definitions are applied to any endpoint. Click on the Define Security Definitions button to add an security as shown below. Similarly any added security definitions can be removed by clicking on the Remove Security Definitions.

Once a specific type of Security definitions is selected for an endpoint, APIC will use this information to auto populate the respective header/query parameters during testing.


For example if you have added a security definitions of type basic then while running the request in the tester section APIC will automatically add the following Header.

Authorization: {{apic.basicAuth(basicAuthUser, basicAuthPassword)}}

Just populate the basicAuthUser and basicAuthPassword environment variable and APIC will automatically add the Authorization header to your request.


Similarly if you select apiKey type of security for an request then apic will add the following header or query parameter to your request while testing it via the Tester module.

<header_name>: {{apiKey}} //if in: header
<query_param_name>: {{apiKey}} //if in: query

Additional properties ^x-properties

While the OpenAPI Specification tries to accommodate most use cases, additional data can be added to extend the specification at certain points. The field name MUST begin with x-, for example, x-internal-id. The value can be null, a primitive, an array or an object. When the value is an object or an array of object, the object's fields names do not need to start with x-. The extensions may or may not be supported by the available tooling, but those may be extended as well to add requested support (if tools are internal or open-sourced).
